GreenSock Animation API (GSAP)

GreenSock Animation API (GSAP) is an amazing animation library. It can be used safely back to IE6 to create animations performant, and it’s the only animation library that handles SVG animations seamlessly.

Many animation experts, like Sarah Drasner and Chris Gannon, use GSAP on a daily basis in their work. You can use GSAP too.

You’ll learn how to use GSAP in this course for simple animations. Complex animations are out of scope. If you want to learn more about complex animations, I recommend you follow Sarah or Chris for more information.

Update: This lesson doesn’t work anymore because GSAP upgraded to v3. (We used v2 for the explanations here). We will come back and fix all GSAP related lessons, but we won’t be teaching GSAP anymore. We will be teaching Web Animations API instead because Web Animations API uses Vanilla JS. No libraries! 🤓)

Installing GSAP

To install GSAP in your project, you need to include the library before you include your JavaScript file. The process looks like this:

<!-- Link to GSAP -->
<script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/1.20.3/TweenMax.min.js"></script>

<!-- Your main JavaScript comes next -->
<script src="js/main.js"></script>

NOTE: I am aware that GSAP has an upgraded version. I’ll come back and update this lesson (and anything related to GSAP) once I completed the rest of the course.

TweenMax and TimelineMax

GSAP lets you choose from four libraries:

1. TweenLite
2. TweenMax
3. TimelineLite
4. TimelineMax

TweenMax has more features than TweenLite; TimelineMax has more features than TimelineLite.

For this course, we’re going to optimize for learning and use TweenMax; it includes almost everything you’ll ever need (including TimelineMax).

If you’re worried about file size, you can optimize your assets for production by choosing the right libraries later. For now, let’s stick with learning.

What is a Tween

A tween is a single movement in an animation. It’s the movement between two points in a CSS Transition. It’s also the movement between two points in a @keyframes syntax.

In GSAP, a tween has the following syntax:

TweenMax.method(element, duration, vars)

method refers to the GSAP method you’ll like to tween with.

element is the element you want to animate. If you want to tween multiple elements at the same time, you can pass in an array of elements to element.

duration is the duration of your tween. It is an integer in seconds (without the s suffix!).

vars is an object of the properties you want to animate. More on this later.

To create a tween, you need to use methods provided by GSAP.

GSAP methods

GSAP lets you animate with many methods. When you’re new, the ones you’ll use most are:

1. set
2. from
3. to

set sets the vars object to the specified values without creating an animation.

from animates the element from the values you set in vars to their current values.

to animates the element from their current values to the values you set in vars.

GSAP vars

vars is an object that lets you specify the properties you want to animate. You can specify any CSS property here. Just switch the CSS naming format into camel case.

For example, if you want to animate the font-size property, you change font-size into fontSize.

const vars = {
  fontSize: '20px',
  backgroundColor: '#40eefa',
}

GSAP also lets you animate CSS transforms. The syntax here is slightly different though:

• For translateX, you use x
• For translateY, you use y
• For rotate, you use rotation

const vars = {
  x: 200, // Translates 200px from left to right
  y: -200, // Translates 200px from bottom to top
  rotation: 90, // Rotates 90 degrees
}

When you use x, y and rotation, GSAP uses CSS transform matrix to calculate the tween.

Creating animations with CSS Transform matrix is really complicated. You won’t ever hand-write one.

Let’s start tweening

Say you have a box. You want to move the box from the left to the right over 2 seconds. To do so, you use the to method because you want to move the box to the right. Here, you use x in vars to move things horizontally.

const box = document.querySelector('.box')
TweenMax.to(box, 2, { x: 400 })

Here’s another example: say, you want to move the box from the bottom to it’s current position. The box should be invisible at first; it fades in and becomes fully visible at the end of the animation.

To do so, you use the from method because you want to move the box from the bottom. You write the y property in vars to move things vertically. You also use opacity to make the box fade in.

const box = document.querySelector('.box')
TweenMax.from(box, 2, {
  y: 100,
  opacity: 0,
})

Timing functions

Like CSS Transitions and CSS Animations, you can create timing functions for each of your tweens. The syntax is slightly different though.

In GSAP, you write the timing functions as the ease property.

const vars = {
  ease: Power0.easeOut,
}

GSAP provides you with many easing variables like Power0, Power1, Power2, Power3 and Power4. These easing variables tell GSAP how strong the easing needs to be.

Power0 gives you the normal ease-in and ease-out values, Power1 gives you the quadratic ease-in and ease-out values, and Power2 gives you the cubic ease-in and cubic ease-out values, and so on.

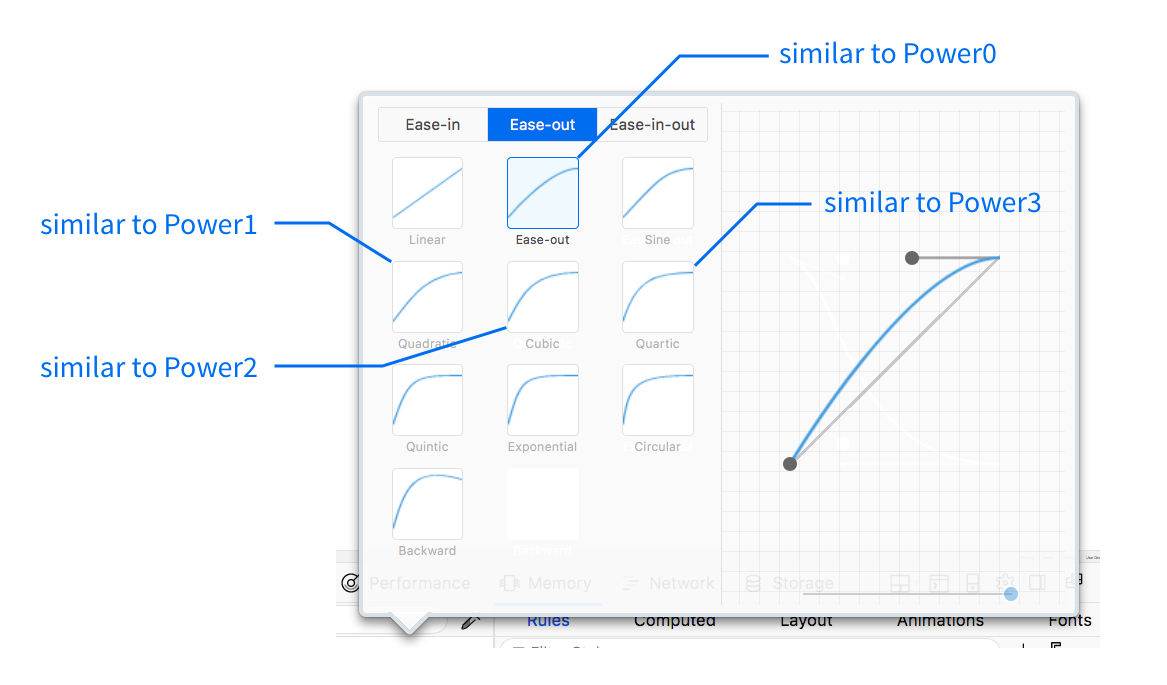

If you use Firefox’s devtools, you can roughly estimate what Power0 to Power4 looks like.

Besides Power0 to Power4, GSAP gives you other easing variables, like Bounce and Elastic, that are more powerful than to cubic-bezier curves—they let you create animations that you can’t do with cubic-bezier!

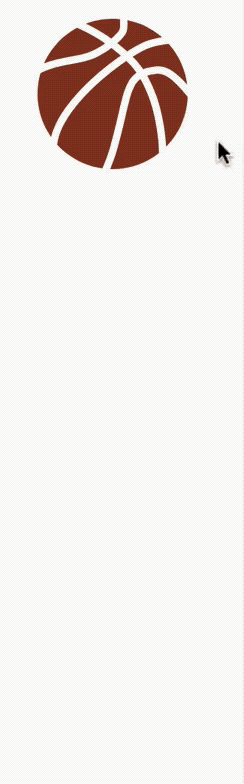

One example is a bouncing animation. Click the ball in this CodePen and you’ll see the ball bounce.

The Easing visualizer

GSAP has created an easing visualizer to help you find the perfect timing-function for your tweens. You can find a complete list of possible easing values in the easing visualizer.

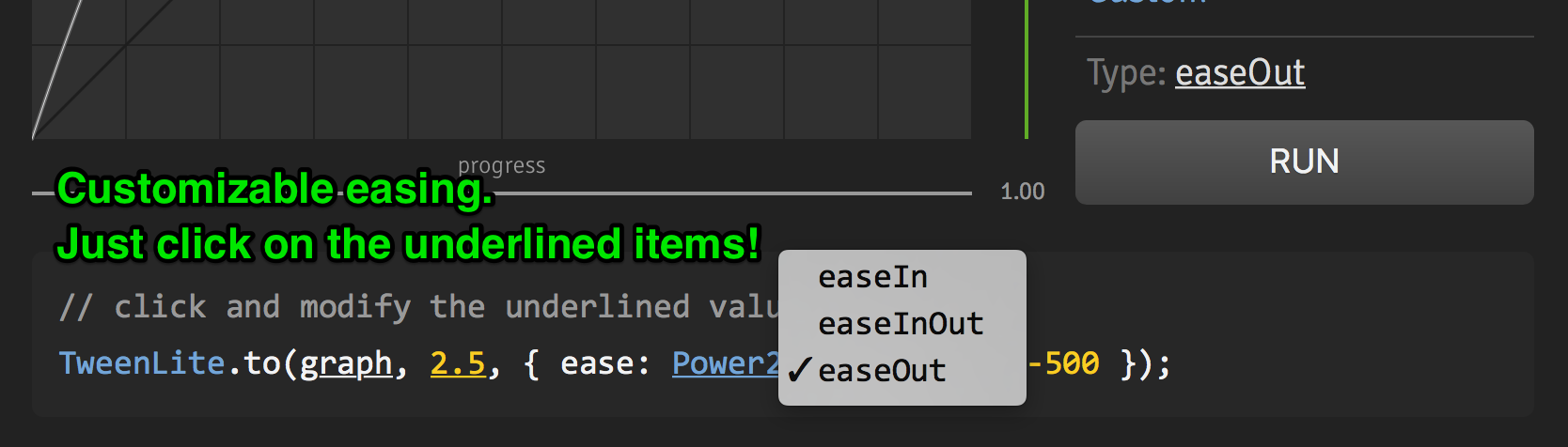

You can also customize easing properties and see how it looks like immediately.

If you want to create animations that look good, you need to go through different possible timing-functions and find the perfect one. There’s no substitute for experimentation here, so experiment away!

Multiple Tweens at the same time

You can Tween an element with two different sets of vars at the same time. To do so, you create two tweens, like this:

const ball = document.querySelector('svg g')

ball.addEventListener('click', e => {
  TweenMax.to(ball, 2.5, {
    x: 600,
    rotation: 720,
    transformOrigin: '50% 50%',
    ease: 'Power1.easeOut',
  })
  TweenMax.to(ball, 2, {
    y: 400,
    ease: 'Bounce.easeOut',
  })
})

See this CodePen if you want to click on the ball yourself.

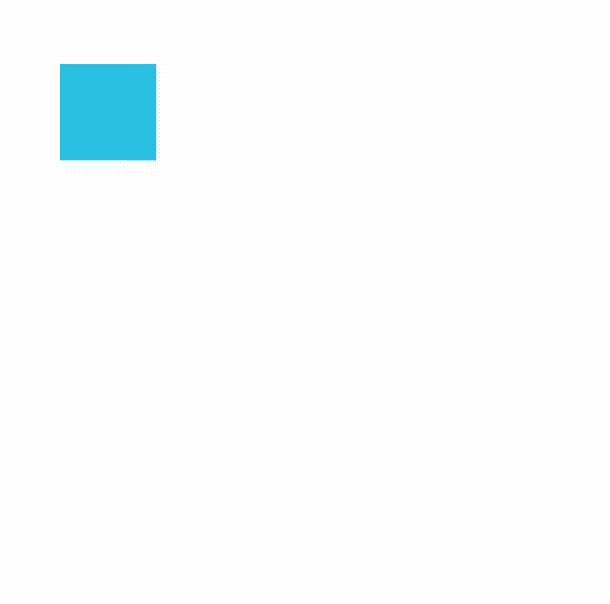

If you want to start the second tween after the first tween is done, you need to set a delay value in the second tween with the delay property.

const box = document.querySelector('box')
TweenMax.to(box, 1, { x: 200 })
TweenMax.to(box, 1, { y: 200, delay: 1 })

Setting delay like this is easy if you only use a few tweens. It becomes unwieldy if you have more tweens to work with.

That’s where TimelineMax comes in to help.

Chaining Tweens with TimelineMax

TimelineMax lets you chain tweens together. When you do so, the second tween starts after the first tween completes; the third tween starts after the second tween completes.

To create a TimelineMax instance, you write new TimelineMax({}).

const tl = new TimelineMax({})

Once you’ve created a timeline, treat the new tl variable as TweenMax and continue doing whatever you did previously.

const tl = new TimelineMax({})
tl.to(box, 1, { x: 200 })
tl.to(box, 1, { y: 200 })

What you’ll notice is, without the delay, the second tween (moving vertically) gets attached to the end of the first tween automatically.

Check this CodePen for a demo.

That’s it for a basic intro to the GreenSock Animation API (GSAP). There’s way more to TweenMax and TimelineMax that you’ve learned in this lesson. Feel free to explore what you can do with them (or wait till you learn more when you build components).

Wrapping up

GSAP is a library that lets you create animations with JavaScript. It contains four possible libraries—TweenLite, TweenMax, TimelineLite and TimelineMax.

To create a tween, you specify three things: the element you want to tween, the duration of the tween, and the vars object—in the to, from methods.

You can create multiple tweens that start at the same time by simply writing two tweens. To chain tweens together, you can use TimelineMax.

Exercise

1. Install GSAP into your project.
2. Create a tween that moves an object from 200px from the left to the right.
3. Create a tween that moves an object 200px from the top to the bottom.
4. Create a tween that turns an object invisible.
5. Chain five tweens with TimelineMax.
